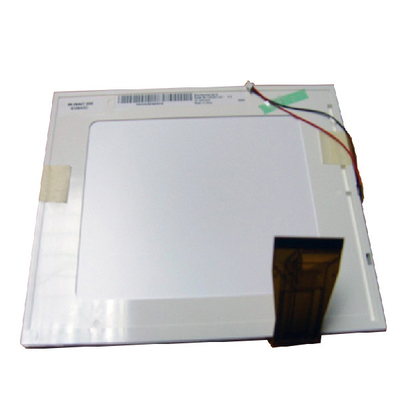

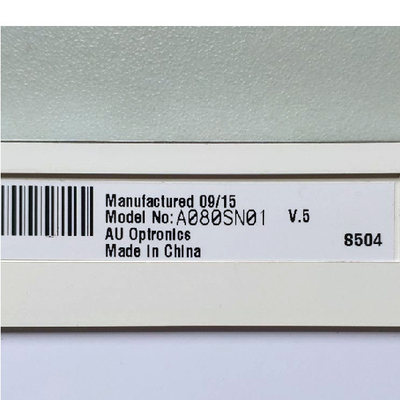

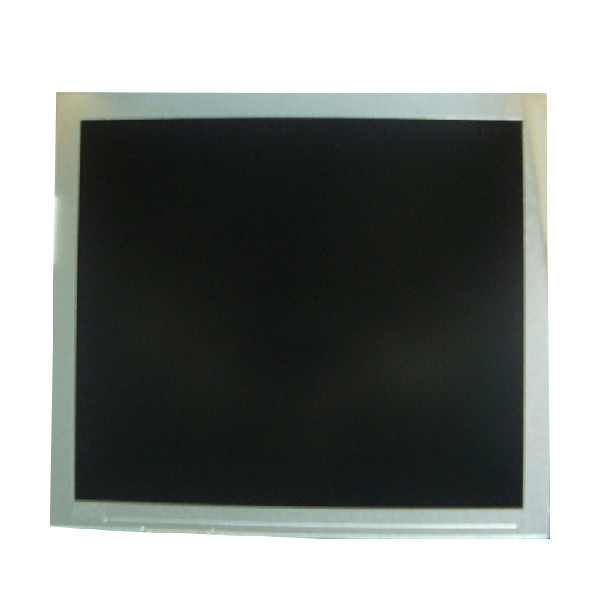

AUO 8.0 INCH A080SN01 V5 800*600 60 pins LCD SCREEN
Produktdetails:
| Herkunftsort: | China |
| Markenname: | AUO |
| Modellnummer: | A080SN01 V5 |
Zahlung und Versand AGB:
| Min Bestellmenge: | PC 1 |
|---|---|
| Preis: | Verhandelbar |
| Verpackung Informationen: | Originalverpackung/herkömmlicher Verpackungskarton |
| Lieferzeit: | 7 TAGE |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 100000 Einheit/Einheiten pro Monat |
|
Detailinformationen |
|||
| Modell P/N: | A080SN01 V5 | Diagonale Größe: | 8,0" |
|---|---|---|---|
| Entschließung: | 800 (RGB) ×600, SVGA, 125PPI | Beschriftungsbereich: | 162 (W)×121.5 (H) Millimeter |
| Einfassungs-Öffnung: | 163,8 (W)×123.3 (H) Millimeter | Entwurfs-Größe: | 183 (W)×141 (H) Millimeter |
| Gewicht: | 188±10g | Anwendung: | Tragbarer DVD-Spieler |
Produkt-Beschreibung
AUO 8.0 INCH A080SN01 V5 800*600 60 pins LCD SCREEN
A080SN01 V5 Product details :
| AUO LCD SCREEN A080SN01 V5 | |
| Panel Brand | AUO |
| Panel Model | A080SN01 V5 |
| Panel Size | 8.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600, SVGA, 125PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 162(W)×121.5(H) mm |
| Bezel Opening | 163.8(W)×123.3(H) mm |
| Outline Size | 183(W)×141(H) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing Angle | 70/70/60/65 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 4/16 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M , 50% NTSC |
| Lamp Type | 3S9P WLED , 10K hours, without drive |
| Frequency | 60Hz |
| Panel Weight | 188±10g |
| Designed For | Portable DVD Player |
| Touch Panel | Without |
| Signal Interface | TTL (1 ch, 6/8-bit) + SPI , 60 pins , FPC |
| Input Voltage | 3.3/11.68/15/-6.75V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Working: -10 ~ 60 °C ; Storage: -20 ~ 70 °C |
| AUO 8.0 INCH A080SN01 V5 800*600 60 pins LCD SCREEN | |
A080SN01 V5 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
A080SN01 V5 Package and shipping time:
we have professional team packages that will package your package more strongly and let it get to you s afely, so you do not have to worry about it.
1. epacket: It usually takes 10-20 working days to receive the parcel.
2. EMS: It usually takes 7-10 business days to receive the parcel.
3. DHL: It usually takes 5-7 business days to recei ve the parcel.
4. China post: It usually takes 15-40 days, Brazil can take several days to receive the parcel.
A080SN01 V5 Guarantee and Refund:
1. All items are in good condition.
2. If the item is defective ( rarely happen ), please inform us within 3 days after you receive it and return it withinwarranty period (12 months)
3. Returned items should have original packaging and in good condition if possible. Please provide us the tracking number and the returning reason.
A080SN01 V5 Quality and Guarantee and customs for free:
1. If you have problems for 1 month after you rec eive your item, you can talk with us, we will try our best to offer you the best solution.
2.if you buy the wrong items or you do not want t he item that you bought, you can return it back to us within 3 days, but you have to offer the shippin g cost.
3.we will be the best price to sell you the product, the price does not include customs fees, if the parcel caused by customs costs, you have to pay yourself.
4. If you do not receive the package after deli very, please contact us, we will work with the problem.
A080SN01 V5 FAQ:
Q: How long will I receive my goods A080SN01 V5 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of A080SN01 V5 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of A080SN01 V5 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
